1. Summary

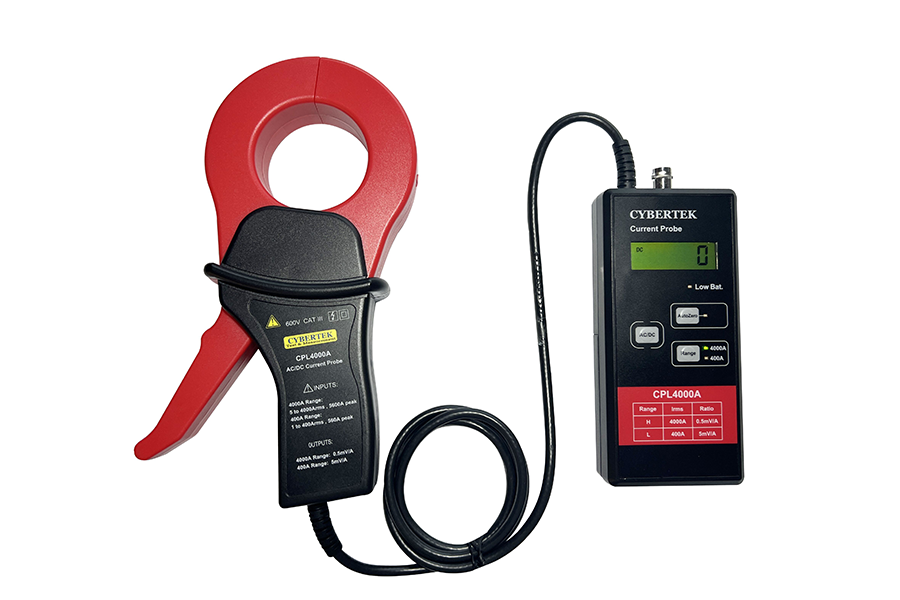

CPL2000A/4000A is a unique instrument that combines an current probe for oscilloscope with a clamp ammeter。CPL2000A/4000A is able to directly display the RMS current value without connecting any devices, and also able to measure the waveform by connecting to an oscilloscope.Its unique sensor design achieves twice the current measurement capability (4000ARMS) compared to similar products in the field, while ensuring excellent in accuracy. The display accuracy of the clamp ammeter function is up to 4 digit and the instrument contains our unique battery and USB dual power supply in the field.
3. Electronics Characteristics
Test Condition: 23℃, 60RH, no nearby current, cable under test through the center during testing, load impedance 1MΩ.
Model | CPL4000A | |
Range | 400A | 4000A |
Maximum measurable current | 400Arms | 4000Arms |
Peak value current | 560Apk | 5600Apk |
BNC output range Sensitivity | 5mV/A | 0.5mV/A |
LCD display value | DC~400Hz RMS value | |
Typical precision（DC，45Hz~66Hz） | ±3%rdg.±5mV | ±3%rdg.±1mV |
BNC output bandwidth（-3dB） | DC～5kHz | |
Typical battery type and battery life | 4 AA alkaline batteries/ 72 hours | |
Operating Voltage | CATII 600V | |
Low Power Indication Function | Lighted red when battery voltage is lower than 4.3 V | |
Overload Indication Function | Buzzer will be activated when current under test surpass the range | |
