1. Features and Applications
The HCPX8000 series current probes are high frequency DC/AC active current probes featuring high bandwidth and high accuracy. Operating with our OT7001 smart probe adaptor, HCPX8000 can communicate with most mainstream brand oscilloscopes on the market and set up attenuation ratio, impedance and delay time automatically. This system freed the users from the trouble of setting parameter manually with the third-party probe and achieve the same user experience as those specialized probe. If the users have no need for smart control function, they can also just power this probe with regular adaptor during measurement.

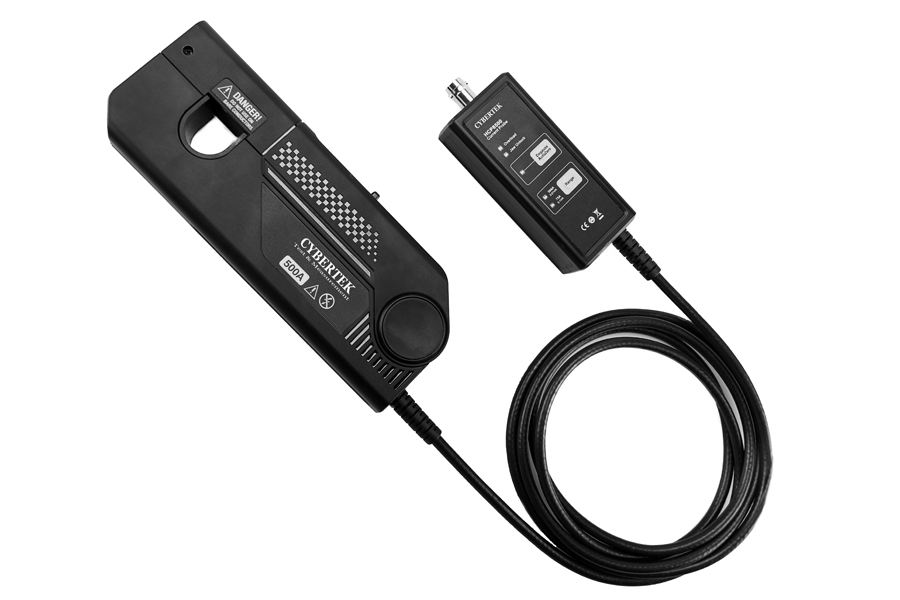

Large Pliers
Model | HCPX8150(A) | HCPX8300(A) | HCPX8500 | |||
Bandwidth (-3dB) | HCPX8150 | DC-12 MHz (Figure 10.a) | HCPX8300 | DC- 6 MHz (Figure 13.a) | DC-5MHz (Figure 16) | |
HCPX8150A | DC-22 MHz (Figure 10.b) | HCPX8300A | DC-8 MHz (Figure 13.b) | |||
Rise time | HCPX8150 | ≤29ns | HCPX8300 | ≤58ns | ≤70ns | |
HCPX8150A | ≤16ns | HCPX8300A | ≤50ns | |||
Continuous maximum input range | HCPX8150 | 150Arms （Figure 11.a） | HCPX8300 | 300Arms (Figure 14.a) | 500Arms(Figure 17) | |
HCPX8150A | 150Arms （Figure 11.b） | HCPX8300A | 300Arms (Figure 14.b) | |||
Max peak current value | 300Apk | 500Apk | 750Apk | |||
Range | 30A | 10X | 50A | 10X | 75A | 10X |
150A | 100X | 300A | 100X | 500A | 100X | |
Overload | 30A | ≥30APk | 50A | ≥50APk | 75A | ≥75APk |
150A | ≥300APk | 300A | ≥500APk | 500A | ≥750APk | |
Current transfer ratio | 30A | 0.1V/A | 50A | 0.1V/A | 75A | 0.1V/A |
150A | 0.01V/A | 300A | 0.01V/A | 500A | 0.01V/A | |
measurable current | 30A | 10mA | 50A | 10mA | 75A | 10mA |
150A | 100mA | 300A | 100mA | 500A | 100mA | |
Amplitude accuracy (DC,45-66Hz ) | 30A | ±1%±10mA | 50A | ±1%±10mA | 75A | ±1%±10mA |
150A | ±1%±100mA | 300A | ±1%±100mA | 500A | ±1%±100mA | |
Input impedance | HCPX8150 | Referenc （Figure 12.a） | HCPX8300 | Reference（Figure 15.a） | Reference (Figure 18) | |
HCPX8150A | Referenc （Figure 12.b） | HCPX8300A | Reference（Figure 15.b） | |||
Terminal load | ≥100kΩ | |||||
Power supply | DC 5V/2A（Standard Adaptor） | |||||
Voltage of insulated wire | 600V CATII 300V CATIII | |||||
Safety compliance | EN61010-1: 2010+A1:2019 EN 61010-2-032:2019 | |||||
EMC standard | EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013 | |||||
