Range 1A/mV
The minimum current measurement 1A
Noise ≤70mArms
Summary

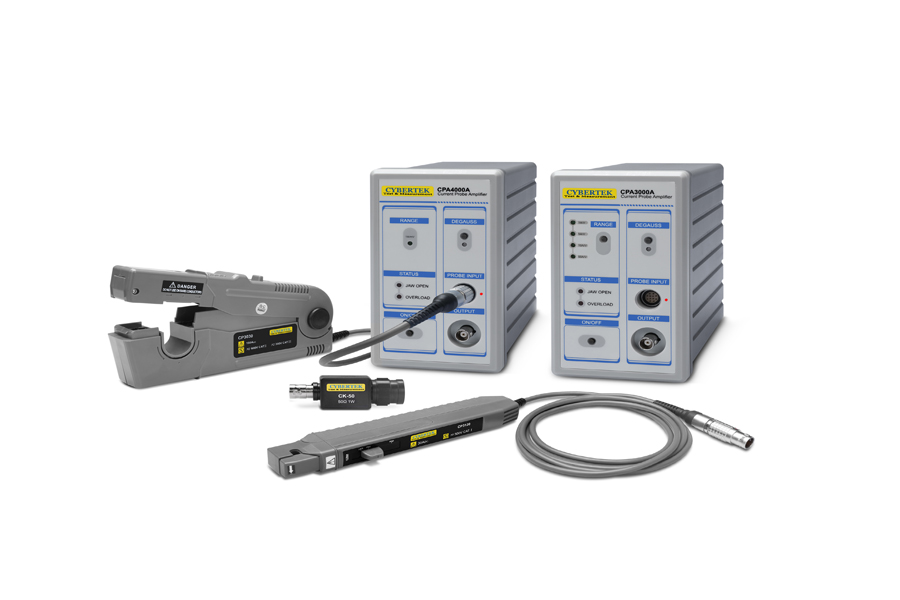

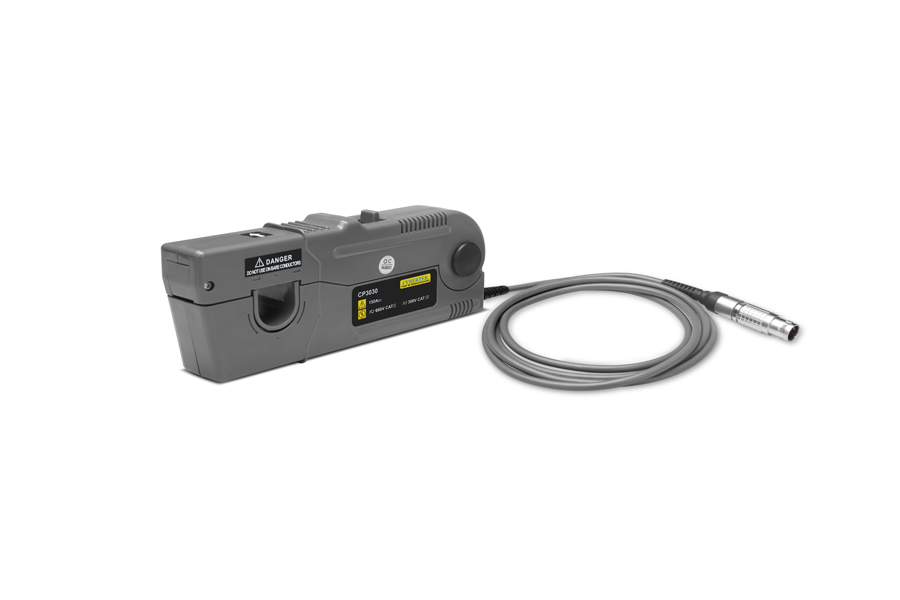

CPA3000 and CPA4000 is high performance Current Probe Amplifiers for the CP3000/CP4000 AC/DC current probes .The current probes covered in this manual are listed
Parameters | Model | ||
CP4040 | |||
Range | 1A/mV | ||
Minimum measured current | 1A | ||
Noise (Bandwidth limitation 20MHz) | ≤70mArms | ||
Maximum current (Decreases as frequency increases Figure 14~17) | Range | 1A/mV | |
DC continuous | 500A | ||
RMS (Positive wave) | 500A | ||
Peak value | 750A | ||
Terminal load requirement | 50Ω | ||
Delay | Current system | 65ns | |
BNC line 1m | 5ns | ||
Maximum insulation wire voltage | 600V CATII 300V CATIII | ||

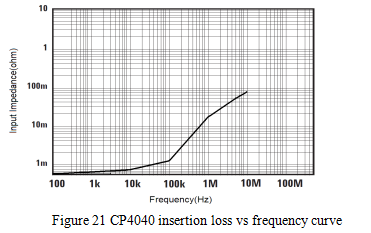

Insertion impedance | Refer to Figure 21 | ||
