1. Summary

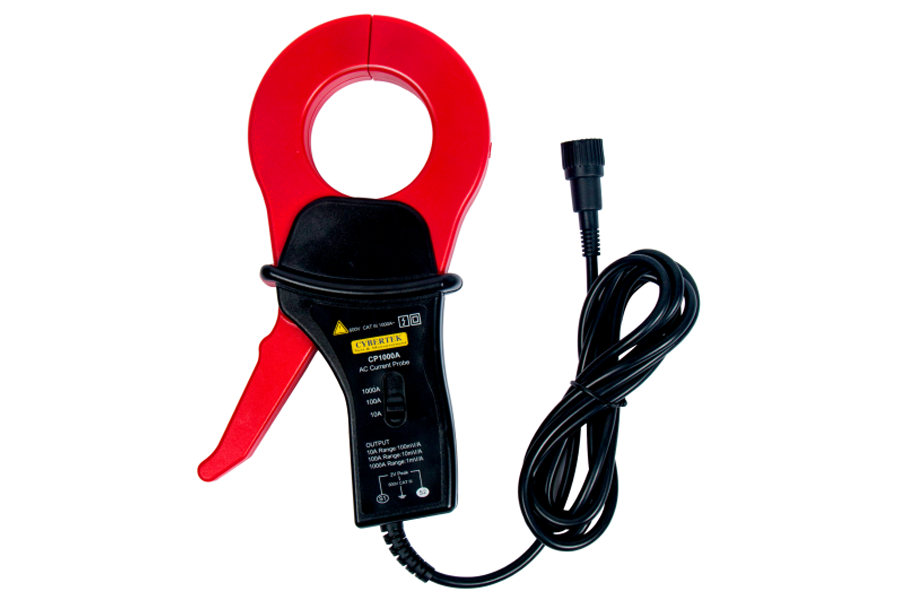

CP1000A current probe is used for alternating current testing. The current under test reaches effective value of 1000A, peak value of 2000A, bandwidth of 100 kHz. Clamp diameter is around 54mm. With its standard BNC outputconnector, CP1000A can be connected to the oscilloscope of any brand. It has three optional ranges and test small current easily. The additional optional accessories BNC to banana plug can realize the connection with digital multi-meter. CP1000A can be widely used in the testing like motor drive, inverter, power switch and avionics.
1、Product Specification
Range | 10A | 100A | 1000A | |
Continuous Current | 10Arms | 100Arms | 1000Arms | |
Peak Value Current | 30Apk | 300Apk | 2000pk | |
Current Transfer Ratio | 100mV/A | 10mV/A | 1mV/A | |
Bandwidth | 10Hz~100kHz | |||
Rising time | ≤3.5μs | |||
Accuracy | 0.1A...1A | ≤2% | ||
1A...10A | ≤1% | |||
10A...100A | ≤0.5% | |||
100A...1000A | ≤0.3% | |||
Relationship between position and accuracy | 0.2%(Typical) | |||
Clamp diameter | 54mm | |||
Output Port | BNC | |||
Output Cable length | 2m | |||
Safety Level | 600V CATIII | |||
Operating Temperature/ Humidity | -10℃~55℃,80% or less | |||
Storing Temperature/ Humidity | -40℃~70℃,80% or less | |||
Operating Altitude | 2000m | |||
Size (Length* Width* Height) | 216*115*45mm | |||
Weight | 695g | |||
